Edge One
Converged Video & Audio Stagebox
Audio and Video become One
Edge One makes the I/O part of Pro AV and broadcast workflows highly flexible by providing combined connectivity and functionality for both video and audio, allowing users to do more with less.
As Lawo’s first stagebox to provide HDMI ports it offers:
- Up to 8x analog audio connectors (XLR) with Lawo-quality preamps
- Up to 8x SDI connectors (micro HD-BNC, bidirectional)
- Up to 4x HDMI ports (two outputs, two inputs/outputs)
- 2x MADI ports with sample rate conversion as standard
- A USB-C port supporting four input and output audio channels
- Synchronization and reference connectors
- 2x Ethernet (with Power-over-Ethernet, PoE++) and 2x SFP connectors for IP networks, with a maximum streaming bandwidth of 25Gbps.
- A GPI I/O port (2 in, 4 out)
Edge One brochure
Edge One is a stagebox with combined audio and video connectivity for a vast range of applications. It completes the convergence of video and audio that was set in motion with Lawo’s HOME Apps.
Overview
Do More with Less
In broadcast and Pro AV, mobility and nimbleness are key. One area where these industries already firmly overlap is stageboxes that provide audio or video connectivity for opera houses, theaters, houses of worship, sports and multipurpose venues, parliaments, corporate buildings, radio, cruise ships, OB trucks, remote productions, and broadcast.
Multi-format audio stageboxes supporting analog, digital, MADI and AoIP simultaneously have been around for a while. They tend to take up a lot of space and come with more connectors than most operators will ever need. Typically, day-to-day applications require a handful of inputs and perhaps even fewer outputs. Placed close to where they are needed, compact stageboxes help operators avoid complex cable runs on stage, in studios, conference rooms, editing suites, etc.
Compact connection boxes for table-top or under-table installation, finally, usually only accommodate a specific audio or video format. Using two or three of them on the same desk quickly becomes messy.
Something similar applies to video gateways. While users are free to specify the number of SDI inputs and outputs they actually need, even the smallest connectivity package may already be physical or functional overkill.
With Edge One, Lawo completes the convergence that was set in motion with its HOME Apps audio and video processing platform. The possibility to run audio and video side by side on the same server was received to great acclaim. This next bold step—broadcast-grade audio and video connectivity in a single, compact stagebox for any Pro AV and broadcast application—is a sensation.
As a HOME-native ST2110 unit that supports NMOS, Edge One is one of a kind: it provides analog, MADI and USB audio, video connectivity on HD-BNC and HDMI, a 32 x 16 audio mixer with audio DSP, video frame sync, JPEG XS encoding and decoding, and a lot more. It also includes power over Ethernet and the possibility to use it locally without IP if that doesn’t add anything.
Welcome to a new breed of video and audio connectivity, with countless possibilities to make your workflows more efficient!
Typical Use Cases

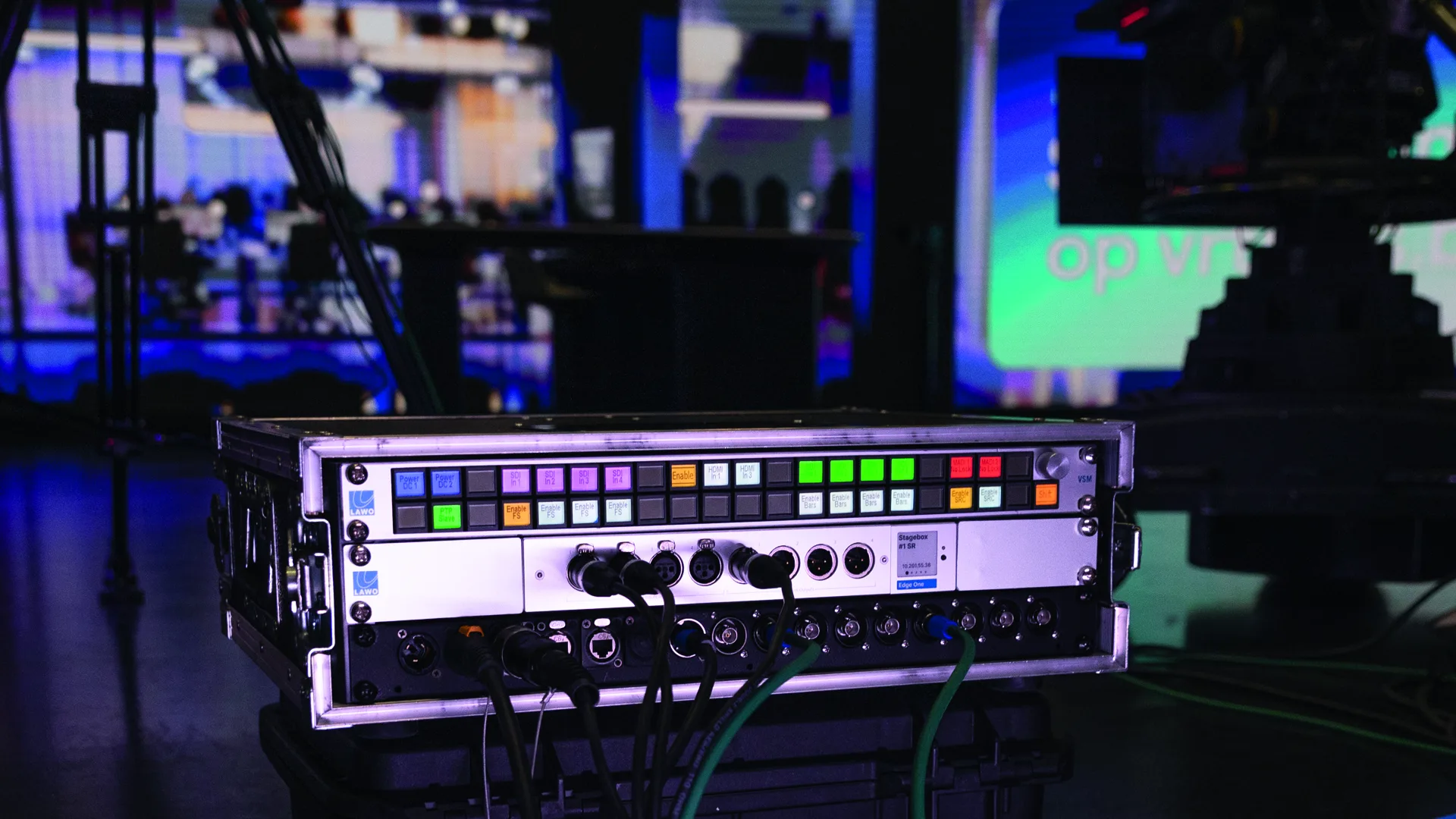

Travel light from studio to studio, and beyond. Imagine a TV show involving two or three presenters, a self-op TV news show with one or two anchors, or the coverage of political developments at the parliamentary precinct.
Edge One offers all required connectivity and control right out of the box: audio in and out, SDI in, HDMI or SDI out, MADI (with sample rate conversion) towards a PA console, and streaming IP essences to the network.
Highlights
- Audio and video in the same box
- SDI, HDMI, MADI and analog audio
- Compact form factor
- Internal test signals, idents, video frame sync, test pattern generator, text insertion, etc.

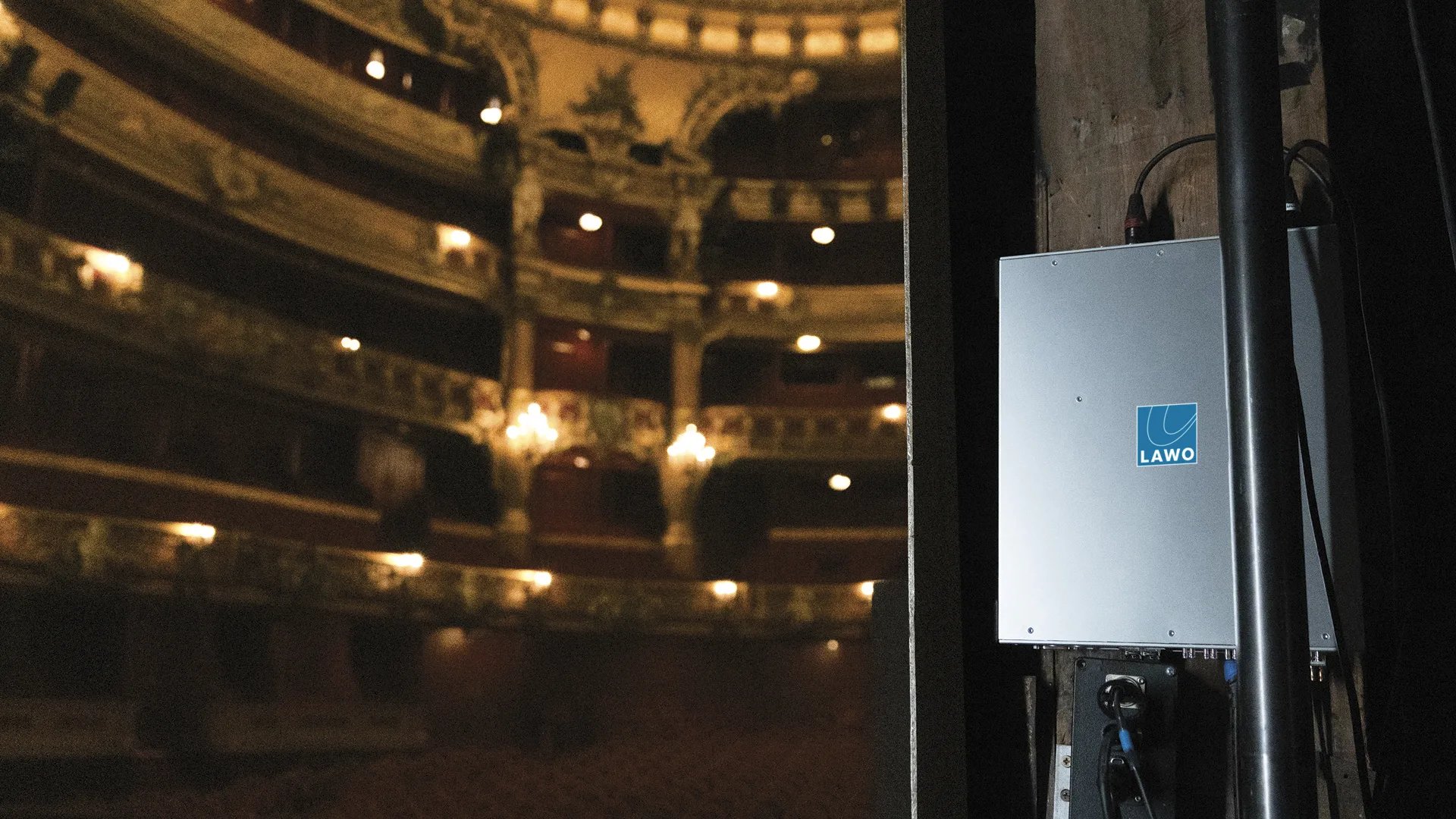

In theaters, opera houses, houses of worship, sports venues and corporate installations, the equipment for audio and video ingest cannot be discreet enough. Simply build a distributed network of Edge One units placed close to the sources and destinations—audio and video in any combination.
Naturally, the microphone preamps can be natively controlled from an mc² console.
Highlights
- Audio and video in the same box
- SDI, HDMI, MADI, and analog audio
- Compact form factor
- Pre-amp control from Lawo audio consoles
The magic is back and more magical than ever! Need local audio shuffling in a compact OB van—and nothing else? Meet Edge One. It receives SDI signals, allows operators to de-embed the audio channels, shuffle them, re-embed the result and send the combined SDI output signal to the van’s satellite uplink. MADI in/out with sample rate conversion is also on board. De-embedded audio signals can be transmitted to your IP network (if available) using natively supported ST2110-30.
Highlights
- SDI embedding and de-embedding
- Audio shuffling
- Video reference I/O
- MADI I/O with sample rate conversion where necessary
- Dedicated RJ45 management port

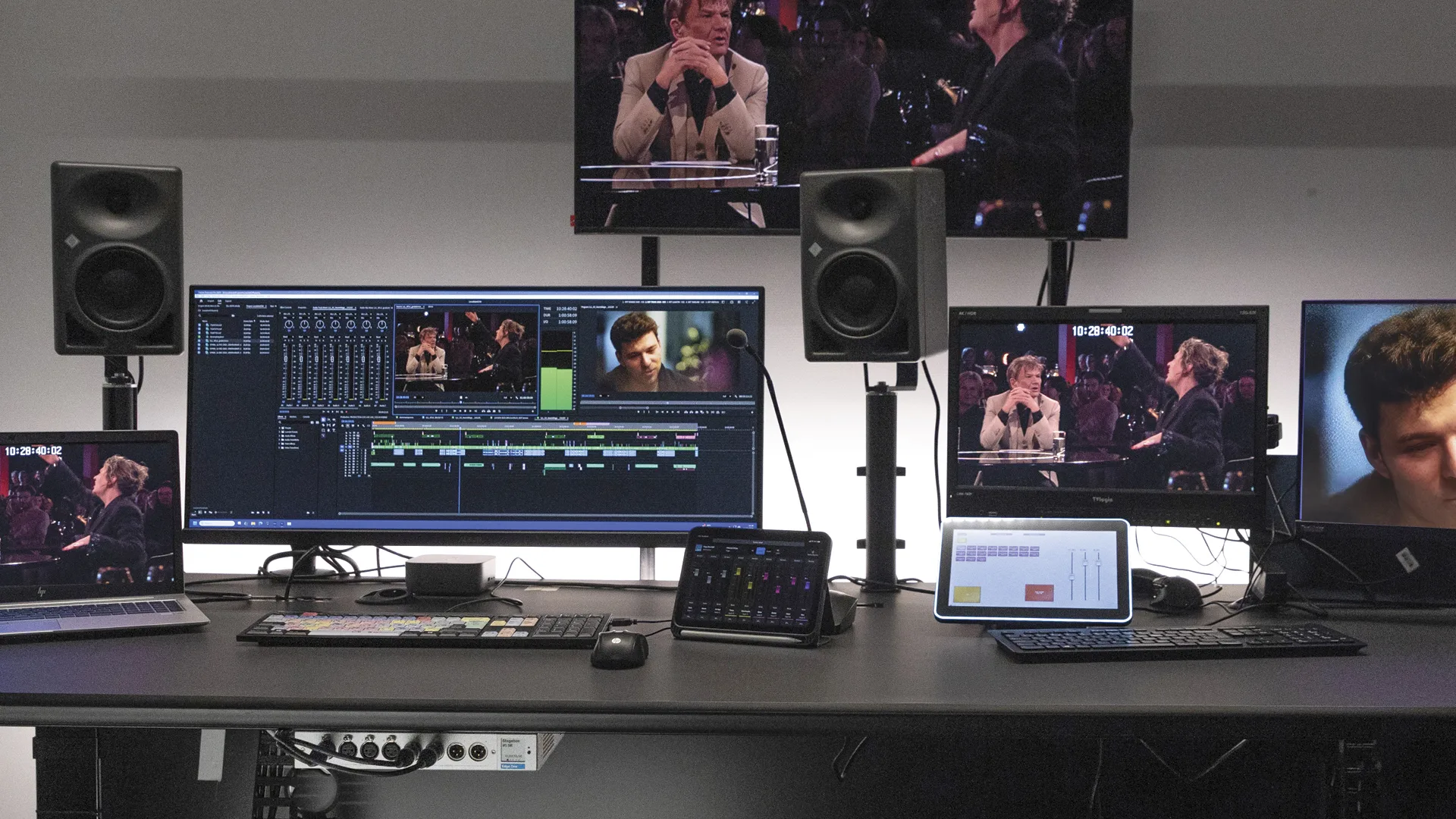

Meet an I/O box with all video and audio connectors you’ll ever need in a post-production environment. Complete with 4K HDMI outputs for a reference monitor and multiviewer screen, microphone inputs for voice-over booths, audio outputs for monitor speakers, and GPI I/O for red-light signaling. Plus class-compliant USB-C audio, just in case.
Highlights
- All-in-one I/O solution
- 4K HDMI outputs available to connect reference monitors and/or multiviewer screens
- Low-latency audio monitoring and processing
- USB-C audio for additional ad-hoc connections
- Optional under-table mount

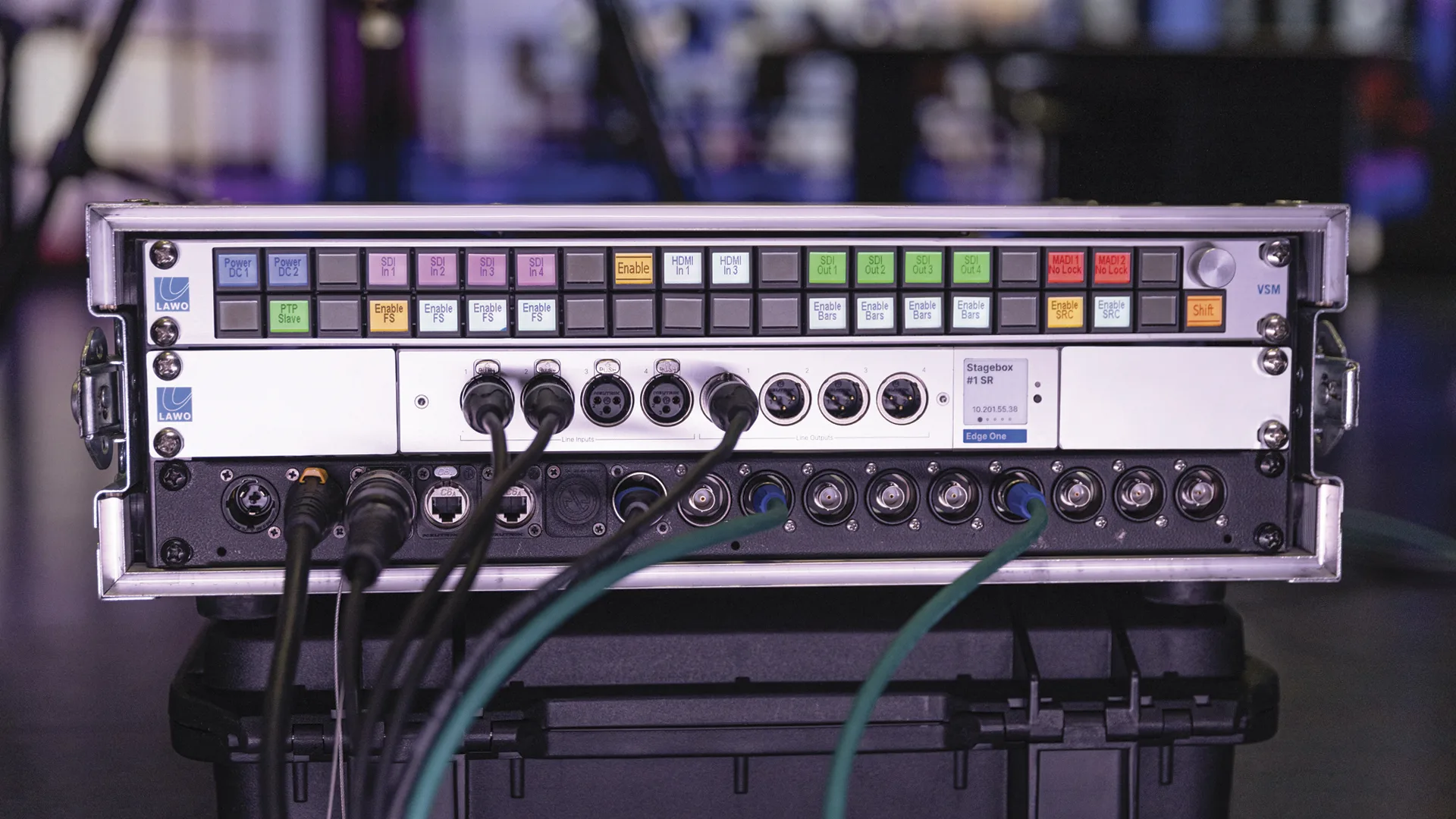

So far, a remote production setup used to involve one video gateway and a separate audio stagebox. Edge One goes one better by combining both while taking up only 1U of flightcase rackspace. This stagebox is SMPTE ST2110 compatible, provides JPEG XS compression (encoding and decoding), and integrates seamlessly with the broadcast facility.
Highlights
- Up to 8x SDI camera inputs
- JPEG XS compression/decompression
- MADI I/O including sample rate conversion
- Analog audio for camera communication (support for 4-wire)
- GPI I/O for camera tally
- Audio control from an mc² console anywhere in the world
- Low-latency ear-piece audio mixing
A campus-wide IT network with wallboxes in all strategic locations provides maximum flexibility regarding the choice of locations and signal destinations. Edge One’s connectivity accommodates both site-specific and global townhalls, video conferencing, official announcements to stakeholders, presentations, and more. Support for HDMI, which also includes signal input, is mandatory in the AV sphere and beyond.
Highlights
- All-in-one audio & video stagebox with flexible relocation
- Up to 8x SDI camera inputs/up to 2x HDMI inputs
- Up to 4x HDMI outputs for connecting monitor screens, projectors or LED walls
- Analog audio inputs and outputs, plus MADI and USB-C I/O
- Built-in DSP for local audio processing

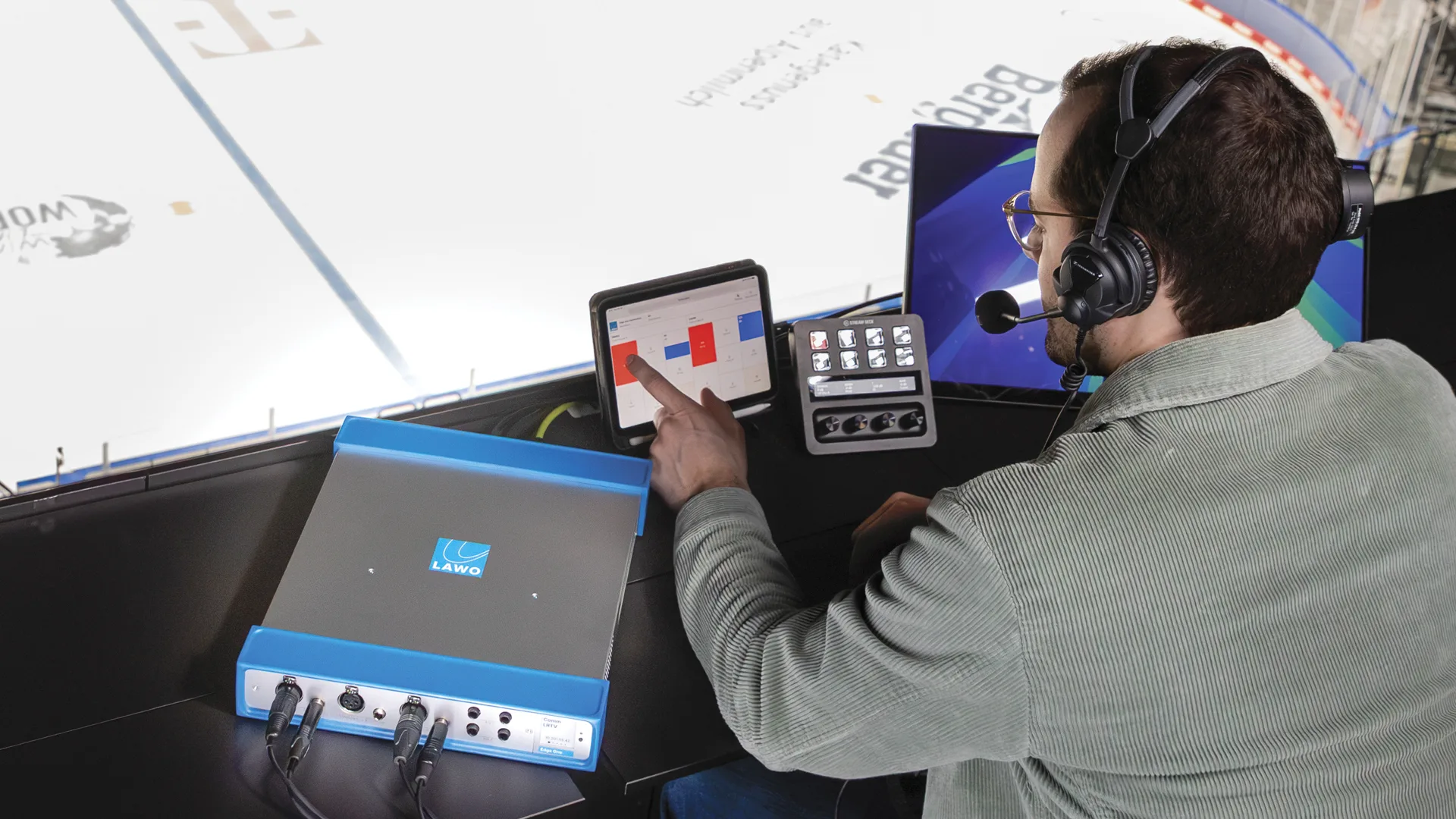

The one-stop commentary box! Edge One is a contribution powerhouse for in-venue commentary. Accommodating up to three commentators, each with their own microphone input and headphone output, it can easily be controlled locally via a tablet or a configurable button panel. Signal transport between Edge One and the OB truck or broadcast hub is handled via SMPTE ST2110.
Highlights
- Dedicated audio module for commentary I/O
- Up to 3 commentators with low-latency, on-site headphone mixes
- 2x Aux In and 2x Aux Out (Line level)
- Edge One Commentary app* (powered by Lawo Workspaces)
(*) Requires HOME Apps
Three Standard Packages + Add-Ons
For out-of-the-box utilization, Edge One is available in three intuitive packages. Like other Lawo solutions, it supports software-licensable add-on functionality. Below please find the contents of each package and the options that can be be added using perpetual licenses or Lawo FLEX subscriptions. Or a combination of both.
Packages
Audio Package
- Audio interface module (three possible versions)
- Audio MADI I/O with sample rate conversion
- Audio DSP
- GPI I/Os
- Copper, fiber and multi-gigabit streaming ports
Video Package
- Up to 8x video inputs or outputs (SDI and/or HDMI)*
- GPI I/Os
- Copper, fiber and multi-gigabit streaming ports
(*) The total number of video in and out instances for all SDI and HDMI connectors is 8.
AV Package
- Audio interface module
- Audio MADI I/O
- Audio DSP
- Up to 8x video inputs or outputs (SDI and/or HDMI)*
- GPI I/Os
- Copper, fiber and multi-gigabit streaming ports
(*) The total number of video in and out instances for all SDI and HDMI connectors is 8.
Add-ons for Audio Package
- Up to 8 single video signal instances (in or out)
- Up to 8 video frame syncs
- Up to 8 video JPEG XS en-/decoding instances*
- Edge One Commentary app
(*) JPEG XS can only be licensed on a perpetual basis.
Add-ons for Video Package
- Audio interface module
- Audio MADI I/O
- Audio DSP
- Up to 8 video frame syncs
- Up to 8 video JPEG XS en-/decoding instances*
- Edge One Commentary app
(*) JPEG XS can only be licensed on a perpetual basis.
Add-ons for AV Package
- Up to 8 video JPEG XS en-/decoding instances*
- Edge One Commentary app
(*) JPEG XS can only be licensed on a perpetual basis.
One Box. All Interfaces.
Edge One provides fixed connectivity for network, video, and more. The opposite side can be fitted with one of the field‑exchangeable audio interface modules, allowing you to tailor the device to specific applications.
Interface Options

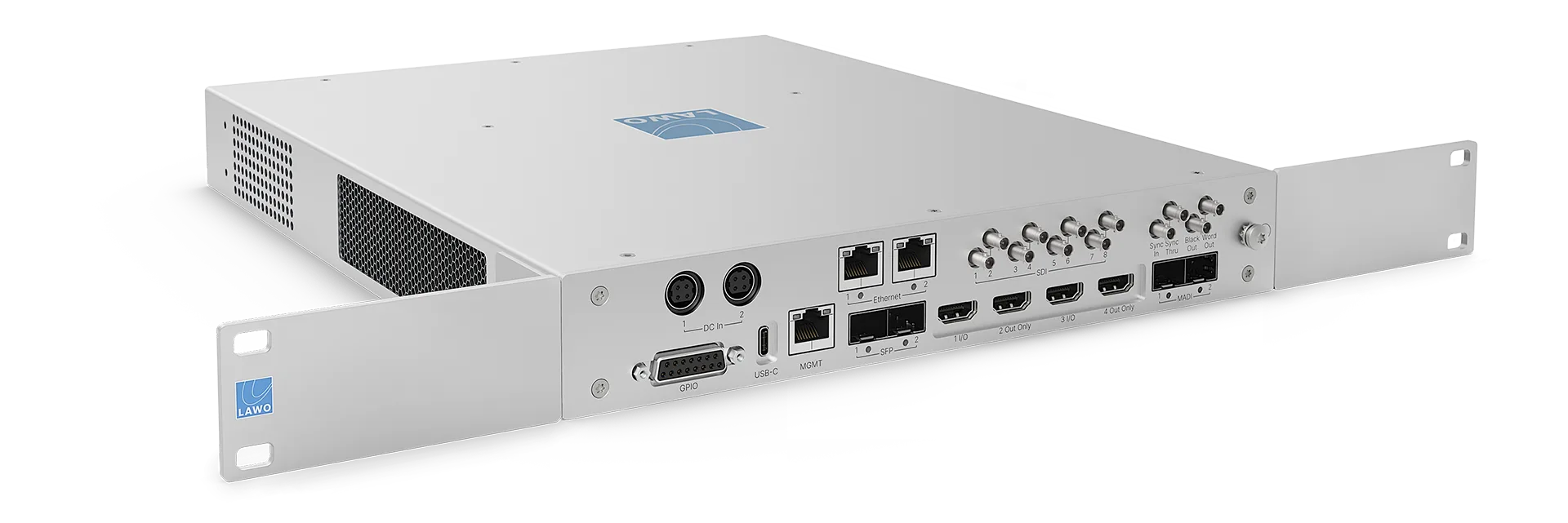

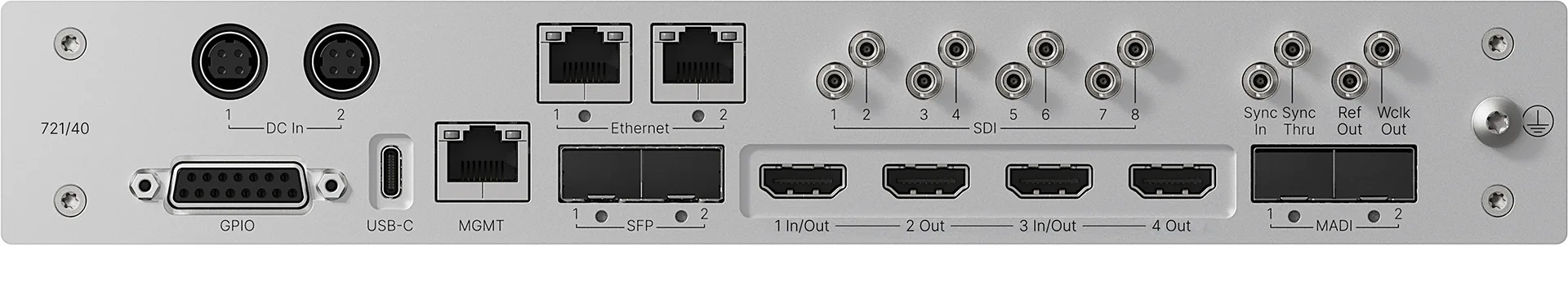

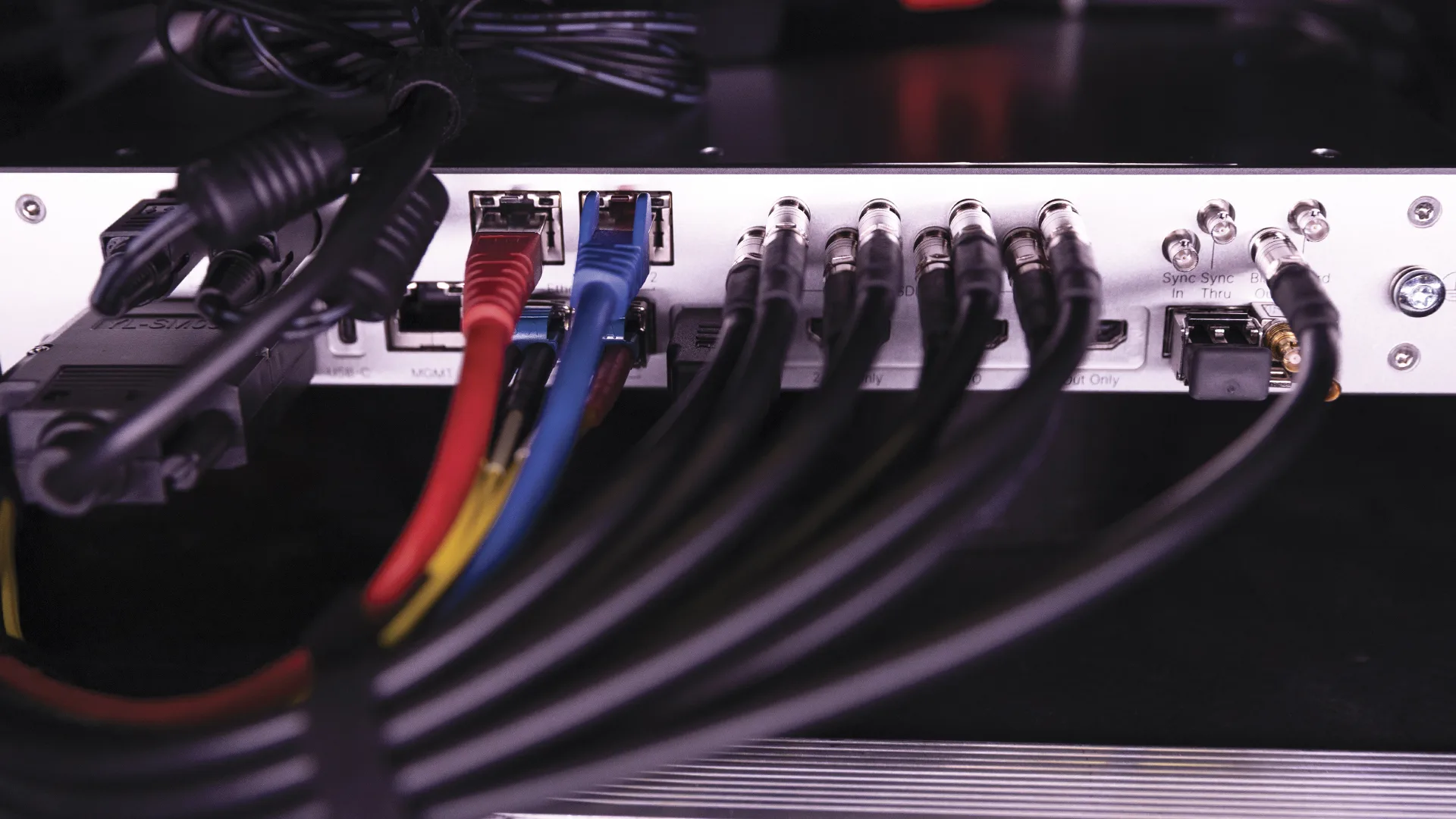

Side A: Fixed Connectivity
- 8x SDI In/Out
- 4x HDMI (2x In/Out, 2x Out)
- 2x MADI (SFP) with SRC
- USB-C (class-compliant audio interface)
- GPI (2x In/4x Out)
- Sync In/Thru, Blackburst and WordClock out
- Management port (RJ45)
- 2x RJ45 streaming ports (1, 2.5., 5 Gbps incl. PoE++)
- 2x SFP/SFP28 streaming ports (1, 10, 25 Gbps)
- 2x Kyron 12V DC inputs
Note: Depending on the selected package, not all connectors may be active.

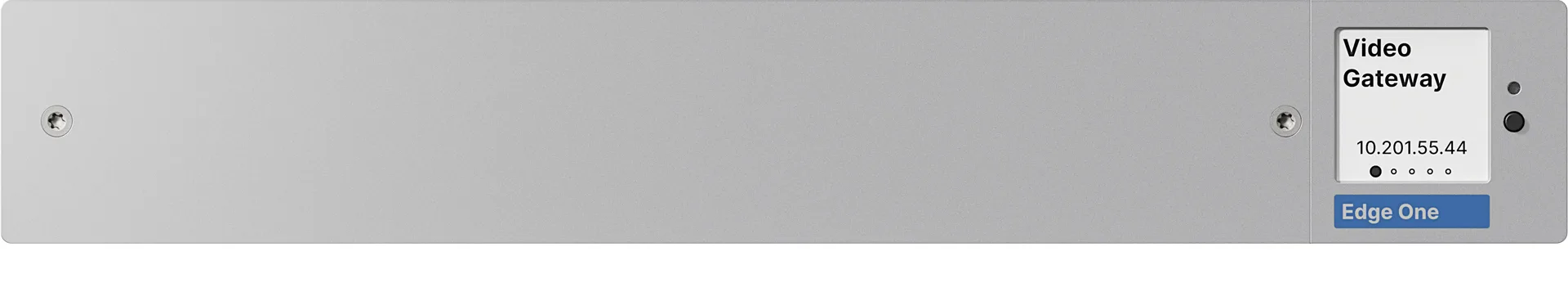

Side B: Blank Panel
The video-only version of Edge One comes with a Blank Panel as standard.
- Included audio functions: Embedding, De-Embedding, Audio Shuffling
- Optional audio functions: MADI I/O, Audio DSP

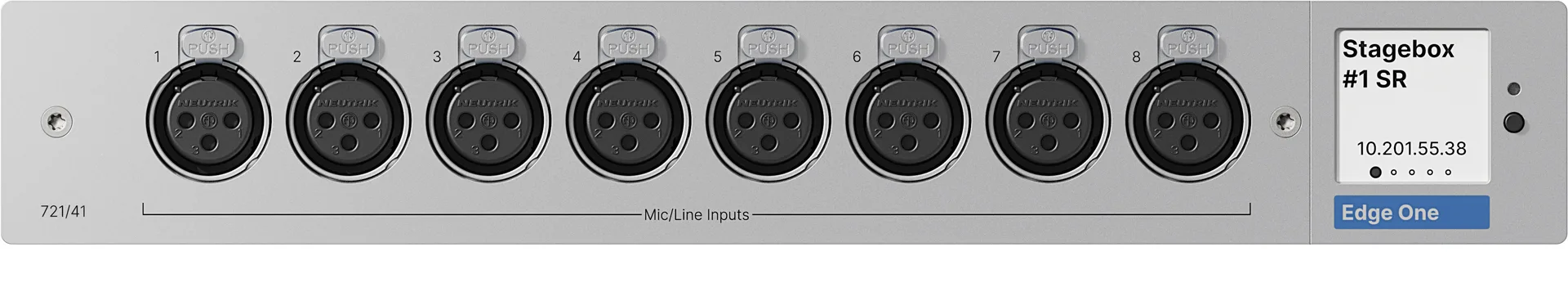

Side B: 8x Mic/Line In Interface Module
With the 8x Mic/Line Interface Module, Edge One provides dedicated connectivity for ingesting analog microphone and/or line‑level sources, for distribution as SMPTE ST2110 audio streams and for sharing via MADI.
- 8x Mic/Line inputs (XLR)
Side B: 4x In/4x Out Interface Module

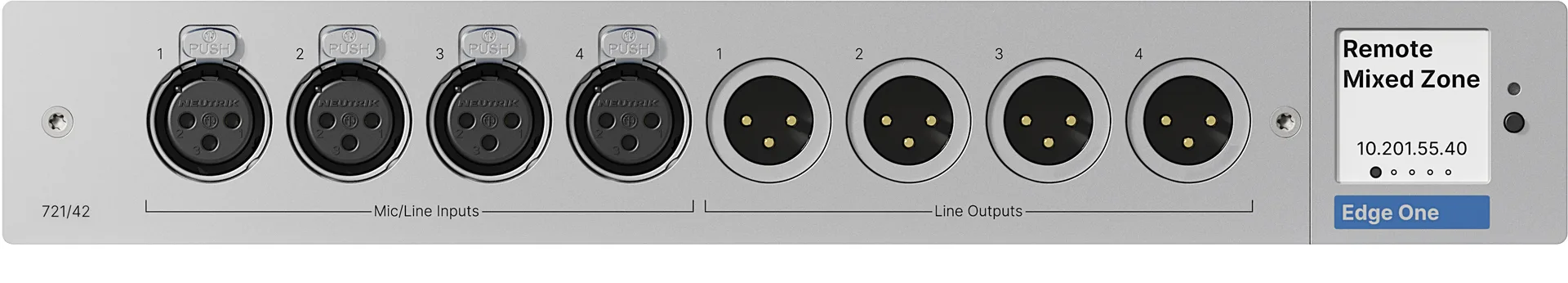

With the 4x In/4x Out Interface Module, Edge One enables users to ingest four analog audio sources and output analog audio to four destinations such as PA systems or monitor loudspeakers.
- 4x Mic/Line inputs (XLR)
- 4x Line outputs (XLR)

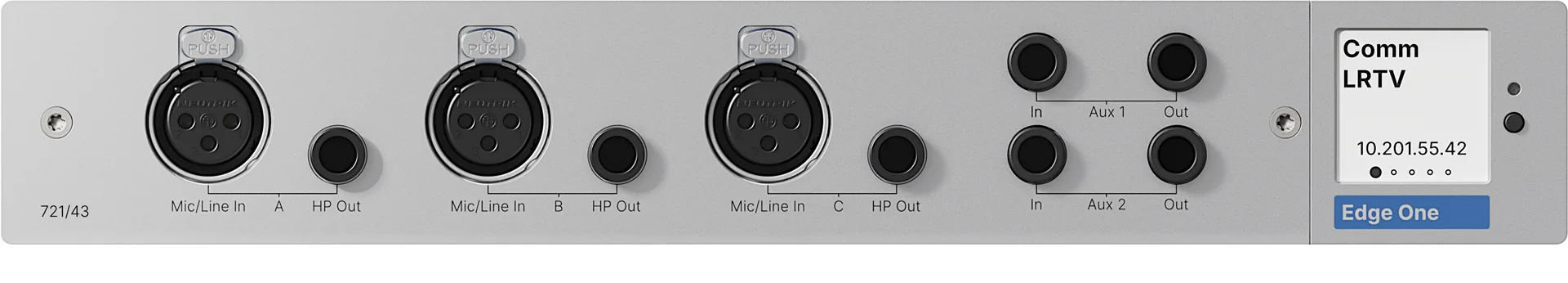

Side B: Commentary Interface Module
With the Commentary Interface Module, Edge One provides dedicated connectivity for commentary applications, accommodating up to three independent commentator positions.
- 3x Mic/Line inputs (XLR)
- 3x headphone outputs (TRS)
- 2x Line inputs (TRS)
- 2x Line outputs (TRS)
Specifications
Interfaces
Audio:
- 1x USB Type-C port: Console maintenance, class-compliant USB audio interface (4x In, 4x Out)
- 2x MADI SFP ports: MM, SM or electrical BNC SFPs supported, incl. sample rate conversion (SRC)
Video:
- 8x micro HD-BNC connectors: 8 bi-directional (software-programmable in groups of 4)
- 4x HDMI connectors: 2 outputs (fixed), 2 bi-directional (software-programmable)
- Synchronization: 4x micro HD-BNC sync connectors
- 1x Reference input
- 1x Loop-through
- 1x Reference output
- 1x Wordclock output
Media:
- 2x RJ45 Media: 1, 2.5, 5 Gbps, incl. PoE++
- 2x SFP/SFP28 Media: 1, 10, 25 Gbps, active optical cable (AOC), short- (SR) and long-range (LR) optical transceiver modules supported
Miscellaneous:
- General-Purpose Interface on DB-15: 4x GPI Out, 2x GPI In, incl. ground and Aux voltage
Audio Interface Modules
8x MIC/LINE IN Module:
- 8x switchable Mic/Line inputs on XLR, 20dB PAD, +48V phantom power
- Remotely controllable gain range: 79dB
- Switchable low-cut filter: 40/80/140Hz
- Support for balanced and unbalanced sources
- Dynamic Range: 119dB(A) at max. input level of +24dBu
4x IN/4x OUT Module:
- 4x switchable Mic/Line inputs on XLR, 20dB PAD and +48V phantom power
- Remotely controllable gain range: 79dB
- Switchable low-cut filter: 40/80/140Hz
- Support for balanced and unbalanced sources
- Dynamic Range: 119dB(A) at max. input level of +24dBu
- 4x Line outputs on XLR
- Floating balanced design for balanced and unbalanced destinations
- Maximum output level: +24dBu
COMMENTARY Module:
- 3x switchable Mic/Line inputs on XLR, 20dB PAD and +48V phantom power
- Remotely controllable gain range: 79dB
- Switchable low-cut filter: 40/80/140Hz
- Support for balanced and unbalanced sources through floating analog-stage design
- Dynamic Range: 119dB(A) at maximum input level of +24dBu
- 3x Headphone outputs on TRS
- 2x Line inputs on TRS
- 2x Line outputs on TRS
- Floating balanced design for balanced and unbalanced destinations
- Maximum output level: +24dBu
Frame Mechanics and Power
- Dimensions (H x W x D): 44 mm (1RU) x 280 mm (11”) x 360 mm (14.2”)
- Weight (incl. audio module): 2.5kg (5.5lb)
- Power: 2x Kycon 12V DC, power over Ethernet (PoE++)
