vsmGear
Panels and Interfaces
Control Interface Possibilites
For all the engineering benefits and flexibility that VSM brings to the broadcast environment, the accessibility and ease of control for operational personnel is paramount to the system design.
A combination of hardware button panels and software or webbased control clients form the basis of this interaction.
All panel configuration and design is handled directly in the vsmStudio software with no need for panel reboots or configuration downloads – changes are instantaneous!
vsmPANEL

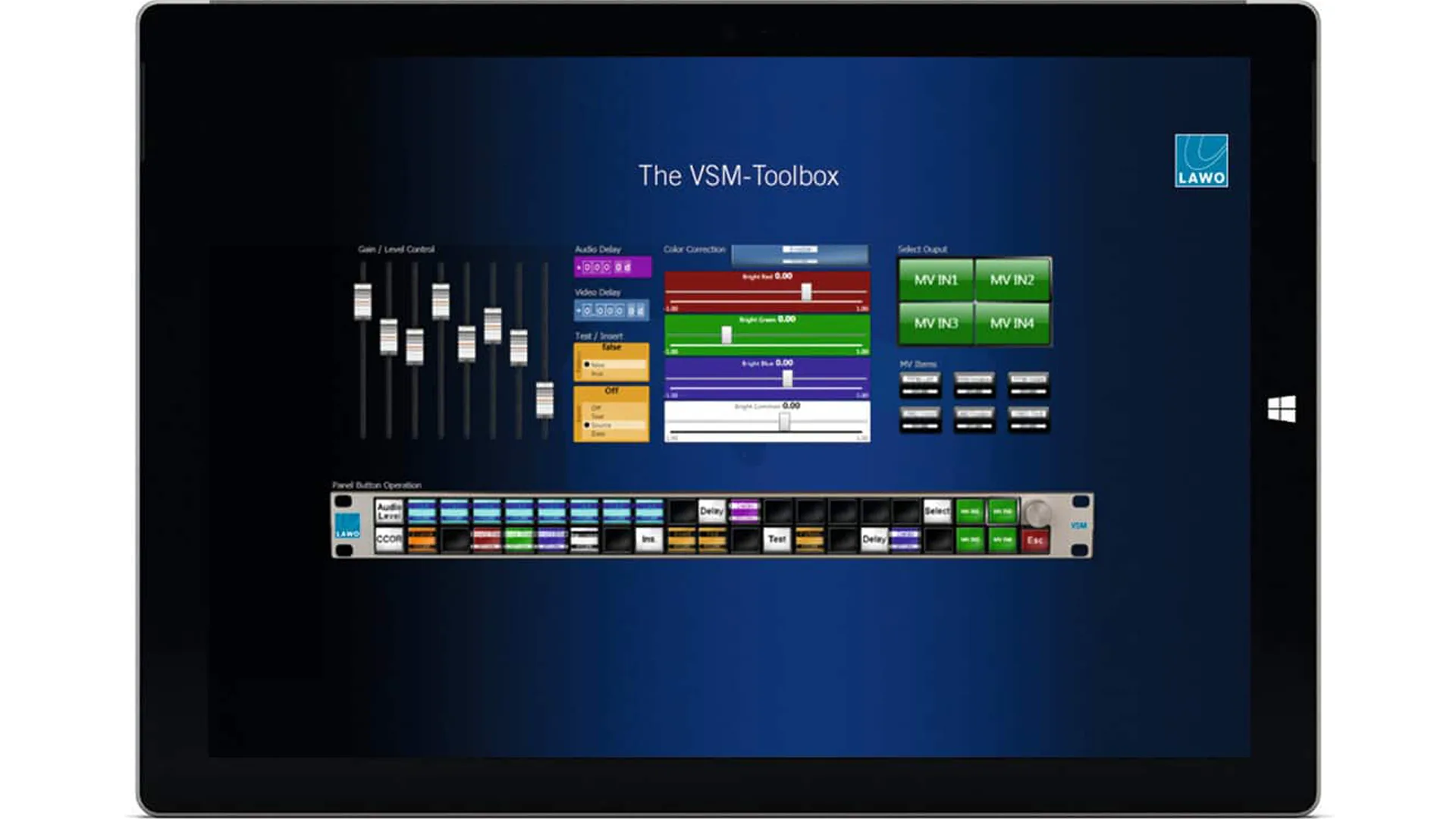

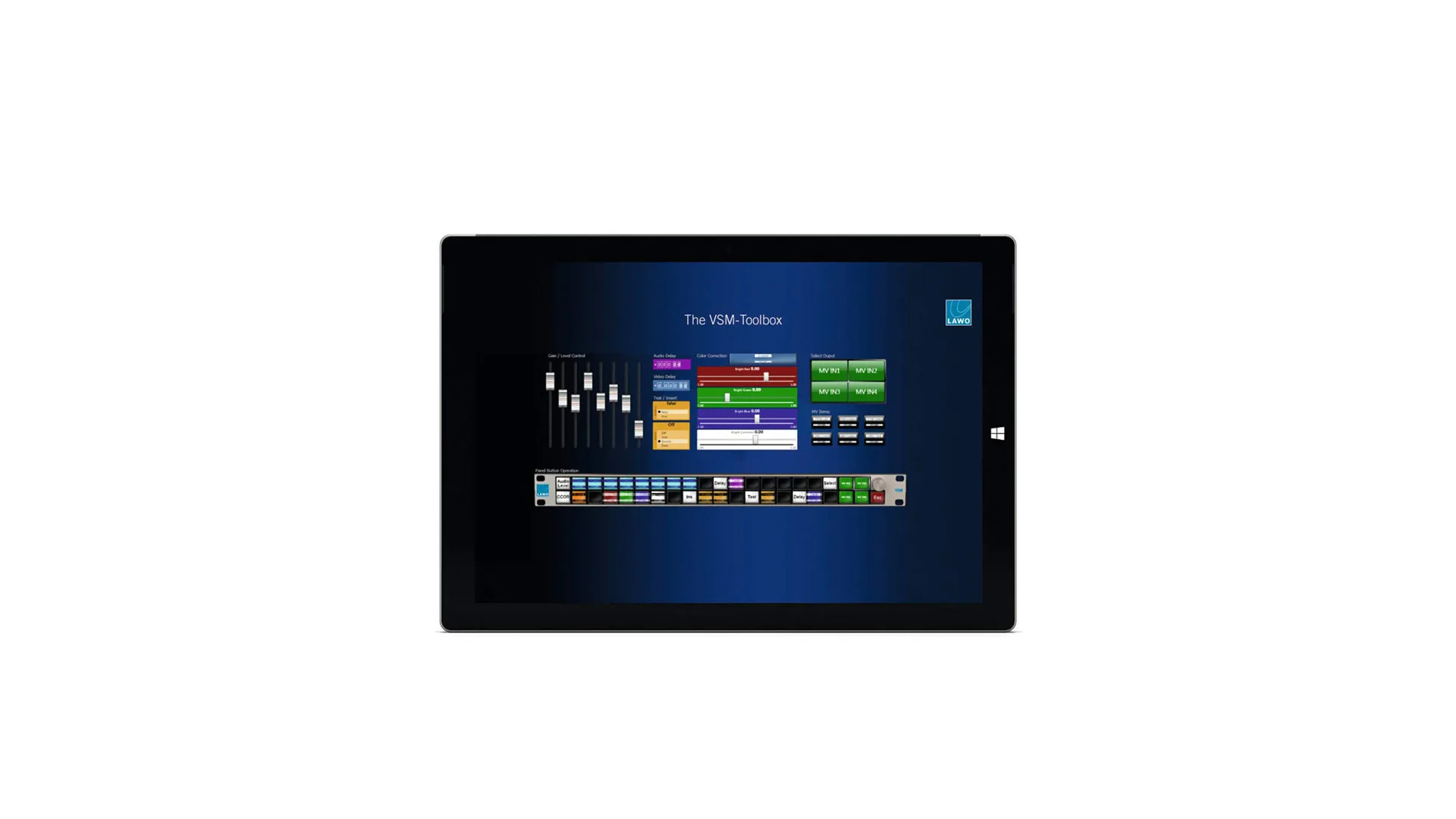

vsmPanel is software that runs on a network PC work-station client (Windows based) and, from a design and setup perspective, acts identical to a hardware panel. In fact, the administrator can control and view any hardware panel in the system directly from this client, if needed.
Any number of client licenses are possible, each offering a different control interface if necessary. Normally operated in conjunction with a touchscreen for the most intuitive operation, vsmPanel allows free design and layout of an operational interface which can include pictures and images.
Adding company logos and corporate design features to the panel design adds to the user experience and interaction. In addition, advanced control functions such as graphical faders, meters (meter data over protocol), alarm management, scheduling control, web browsers and media players can all be freely incorporated into a panel design. There are no limits to the number of control “pages” within a panel and with a large toolbox of button navigation possibilities, even the most complex workflows can be easily accommodated and, in most cases, simplified. Even complete signal path views can be created giving crucial feedback and routing status in complex applications.
The ease of control for operational personnel is paramount to the system design.
Lawo VSM brochure

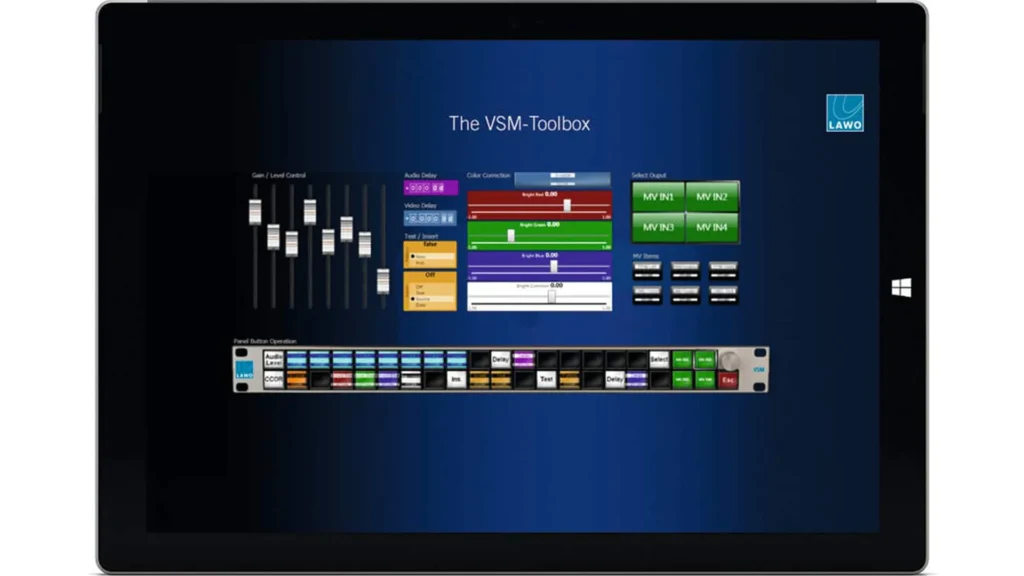

The VSM control system offers an extensive system integration toolbox that allows the customer to easily change interfaces without manufacturer support, giving peace of mind that the system will be able to adapt and grow as needs and requirements change over time.
vsmLBP Series
The LBP series of hardware control surfaces have fully configurable multi-color graphical LCD buttons which provide unmatched status display, control and monitoring possibilities. Each button has the ability to perform multiple functions from a single push, thus hugely increasing the operational flexibility of the panels. Hardware investments are protected by the fact that VSM control surfaces are not dedicated to any device or function – control and monitor what you need wherever you need it.
Highlights
- vsmLBP series of hardware control and monitoring panels have fully configurable multicolor graphical LCD buttons
- Buttons provide unmatched status display and control possibilities
- Each button can perform multiple functions with a single push, thus hugely increasing the operational flexibility of the panels.
- Every action initiated from a button is executed in real time and for operational safety and clarity, the button displays will only show the true and current status of crosspoint or parameter settings.
- Large toolbox of button navigation and function possibilities and no limits to the number of control “pages” within a panel
- Panels can be configured, maintained and controlled remotely
- All panels can be connected to vsmENC 17 (rotary incremental encoder panel)
- Several panels can be connected logically to work as one
- Direct Ethernet connectivity to the VSM network
- Each panel has two built-in GPIOs for free use
- Socketed buttons for easy replacement
- User access rights transfer via RFID tag reader
Available Hardware Control Surfaces
vsmLBP 16e
16 LCD Buttons RGB-Backlight + 1 Encoder, Ethernet / 1RU
vsmLBP 17
17 LCD Buttons RGB-Backlight, Ethernet / 1RU
vsmLBP 24
vsmLBP 31e-DT
31 LCD Buttons RGB-Backlight + 1 Encoder, Ethernet
vsmLBP 32- DT
32 LCD Buttons RGB-Backlight, Ethernet
vsmLBP 33e
33 LCD Buttons RGB-Backlight + 1 Encoder, Ethernet / 2RU
vsmLBP 39V
39 LCD Buttons (E3) / RGB-Backlight / Ethernet / Dimensions match Camera RCP
vsmLBP 34V
34 LCD Buttons (E3), RGB Backlight, Ethernet
vsmLBP 41e
41 LCD Buttons RGB-Backlight + 1 Encoder, Ethernet / 1RU
vsmLBP 42
42 LCD Buttons RGB-Backlight, Ethernet / 1RU
vsmLBP 50e
50 LCD Buttons RGB-Backlight + 1 Encoder, Ethernet / 2RU
vsmLBP 51
51 LCD Buttons RGB-Backlight, Ethernet / 2RU
vsmLBP 51V
51 LCD Buttons RGB-Backlight, Ethernet / 2RU
vsmLBP 83e
83 LCD Buttons RGB-Backlight, Ethernet / 2 RU
vsmLBP 84
84 LCD Buttons RGB-Backlight, Ethernet / 2RU
vsmENC Series
vsmENC 17 Series Highlights
- 17 incremental encoders with RGB-Backlight
- Connectable to all vsmLBP surfaces for intuitive and precise parameter control
vsmENC 17
17 Encoders, RS422 / 1RU
VSM Interfaces
vsmSMARTHUB IP-TO-SERIAL Interfaces – Highlights
- Interfaces between Ethernet and RS422 / RS232
- Interface to connect the vsmUMDs
- Interface to connect Automation Systems via serial
vsmSmartHub 111
1 x RS422 + 1 x RS232 (configurable via vsmDiscover)
Ethernet / 1RU
vsmSmartHub 208
8 x RS422 (configurable via vsmDiscover)
2 x Ethernet (1 x Ethernet per 4 RS422-ports) / 1RU
vsmSmartHub 244
4x RS232 (DSub 9P) + 4x RS422 (RJ45) configurable via vsmDiscover
2x Ethernet (1x Ethernet per 4 RS422-ports and 1x Ethernet per 4 RS232) / 1RU
vsmSmartHub 280
8x RS232 configurable via vsmDiscover
2x Ethernet (1x Ethernet per 4 RS232-ports) / 1RU
GP-I/O BOX Interfaces
vsmGPI / vsmGPO / vsmGPI/O Highlights
- Connection of physical GPI/Os to the VSM system
- Compact in size and light weight
- Quick and easy connector access GPI/Os are freely configurable via vsmStudio software
vsmGPI 64
64 galvanically isolated TTL-compatible inputs
1xEthernet, 1RU
vsmGPO 64
64 dry relay-outputs, up to 60VDC/35VAC/7A
1xEthernet, 1RU
vsmGPIO 32
32 galvanically isolated TTL-compatible inputs
32 dry relay-outputs, 1xEthernet, 1RU
VSM Monitors: Under Monitor Displays (UMD)
vsmUMD Highlights
- Graphical DOT display for source and tally information
- UMD layout is freely configurable
- Can also show timers, clocks, parameters and much more
vsmUMD-SD 19"
170 x 7 pixels + 1 Line of red / green / yellow Tally RS422
(Ethernet communication via SmartHub) / 1RU
vsmUMD-SD ½ 19"
80 x 7 pixels + 1 Line of red / green / yellow Tally RS422
(Ethernet communication via SmartHub) / 1RU (9.5”)
