vm_mv
4K Multiviewer
This product is no longer available.
16, 18 or 24 Sources to keep an Eye on

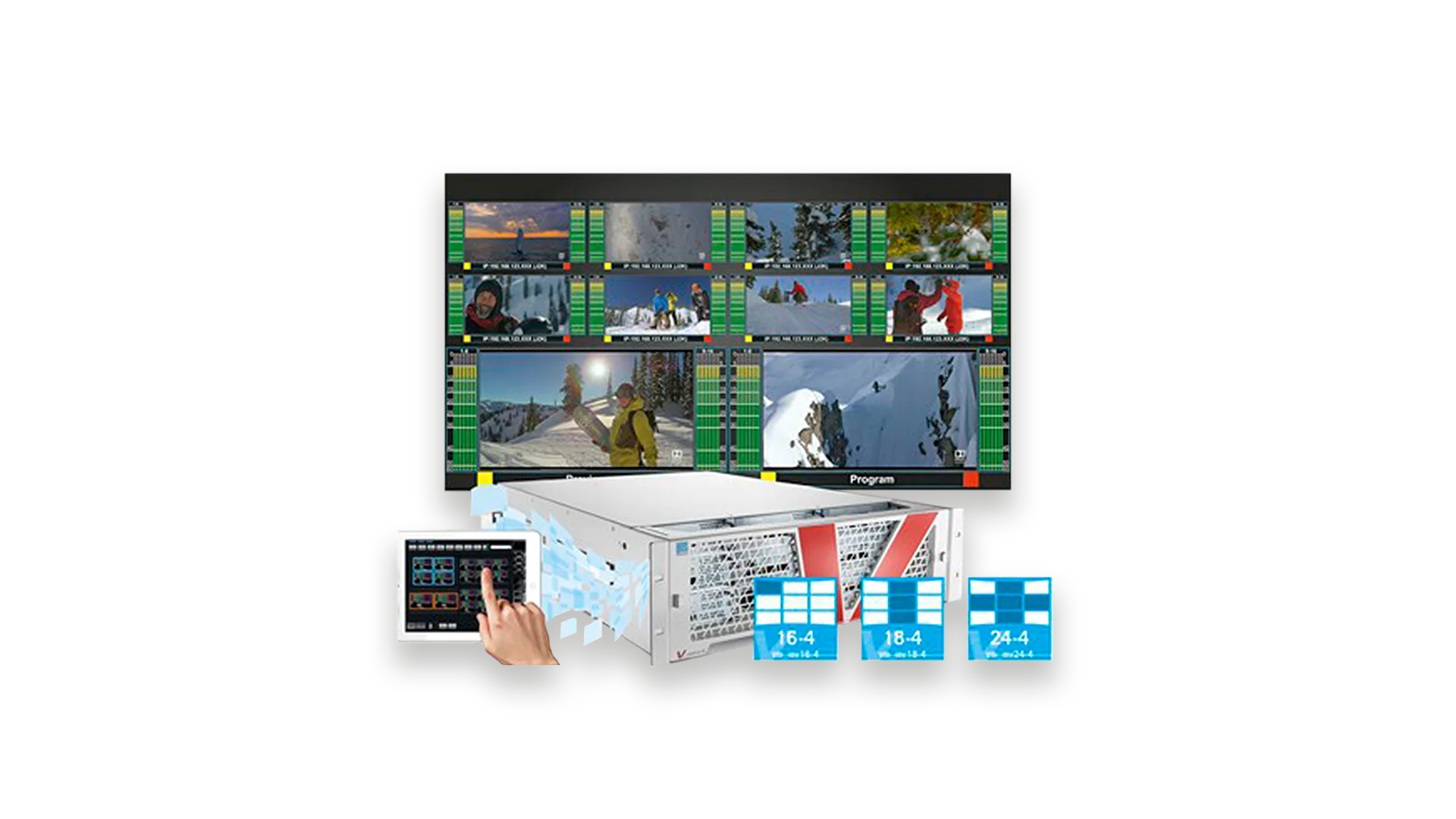

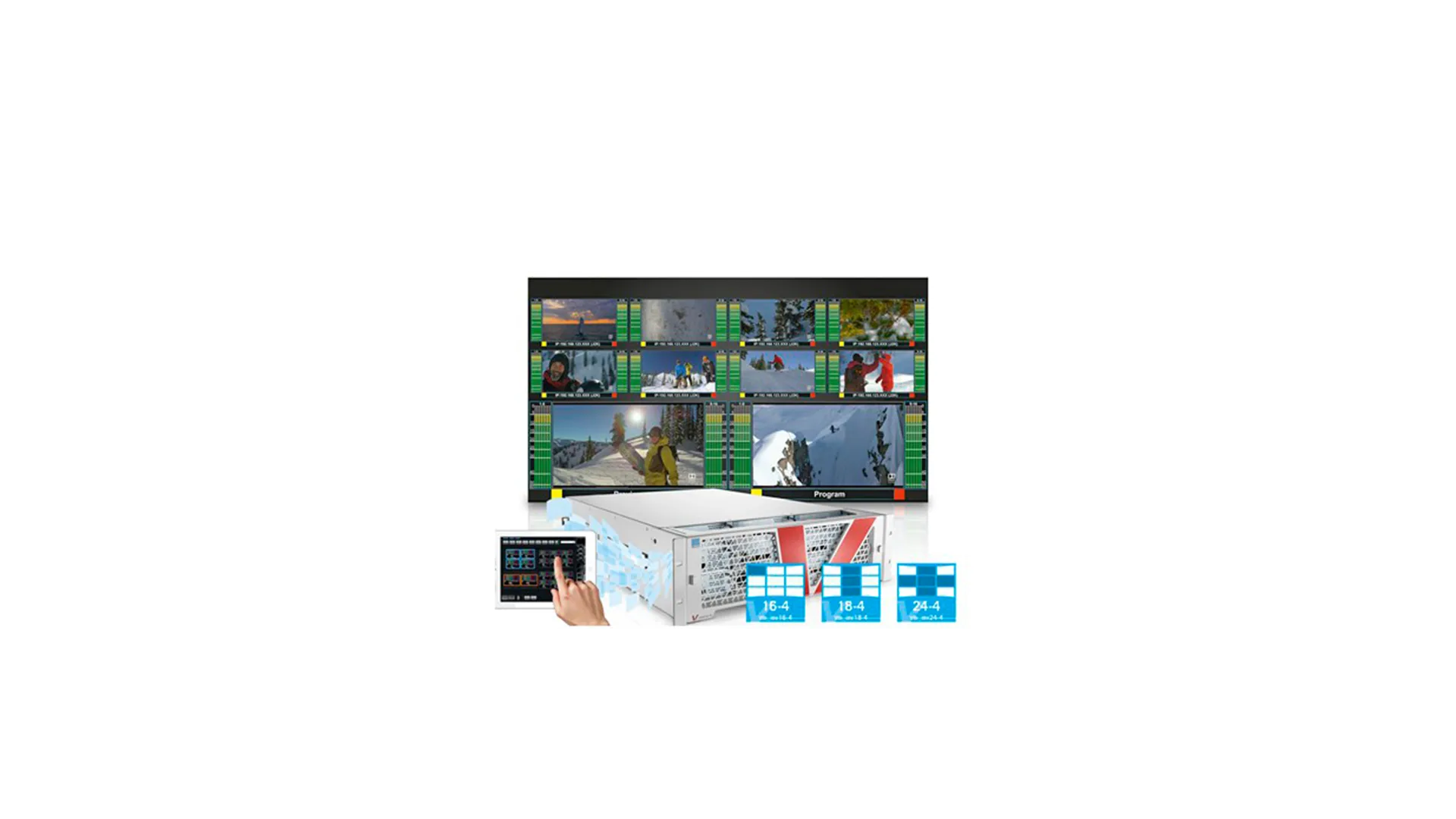

The Lawo vm_mv24-4, vm_mv18-4 and vm_mv16-4 virtual modules are software applications (apps) for the V__matrix C100 core processing blade for high-quality multiviewer functionality.
Lawo V__matrix brochure
The V__matrix ecosystem scales linearly from tens to thousands of I/O and processing functions, which make it ideal for any size live broadcast facility.
Flexible Source sharing
Flexible Source sharing
The vm_mv24-4 app can monitor up to 24 simultaneous sources from a combination of IP or SDI video, while the vm_mv18-4 and vm_mv16-4 can monitor 18 and 16 sources respectively.
All three multiviewer apps can generate up to 4x 3G output heads (1 @ 4K) and scale and display any source on any output head without limitation. The same source can be displayed on multiple output heads at different resolutions.
The output heads can be configured as either 4x 3G or 1x 4K and output over IP as ST2110/2022 or SDI via a modular I/O rear-plate.
theWALL – smart Drag & Drop Multiviewer Control
The V__matrix multiviewer apps were designed to be controlled by Lawo’s groundbreaking touch operated configuration system “theWall”. This unique HTML5 based GUI makes mosaic configuration with borders, colors, UMDs, tally etc. a simple case of drag and drop.
Key Features
- Broadcast-quality low-latency IP and SDI multiviewer apps for V__matrix C100 core processing blades
- Support for IP and SDI sources in 4K, 3G, HD and SD* (*not via ST2110) — rear plate/format dependent
- Designed for monitoring of IP video and audio with support for ST2022 and ST2110
- Intuitive control via the touch-supported HTML5 GUI in “theWALL”
- Creates 4 mosaic output heads at 3G, or one mosaic output head at 12G
- Output heads can be streamed as IP (ST2022 or ST2110) or SDI using an optional C100 I/O rear-plate
